RAPSH — Reversed-Action Straight-Line
Reversed-action straight-line clamps; lock only in the extended position.

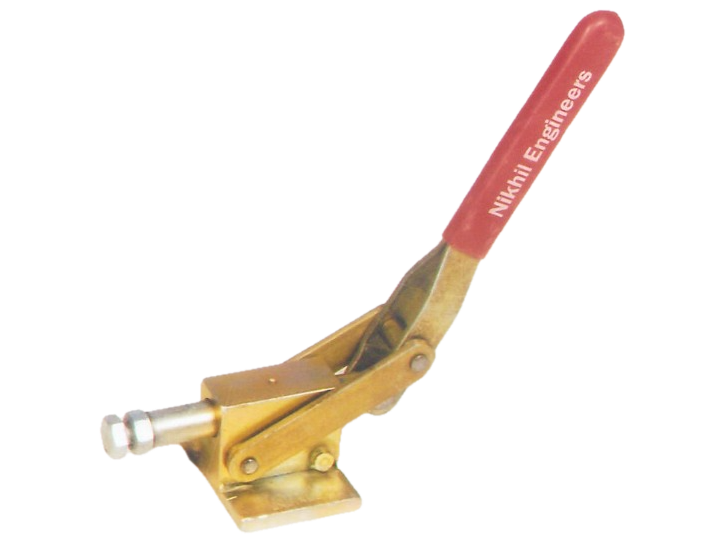

RAPSH-10

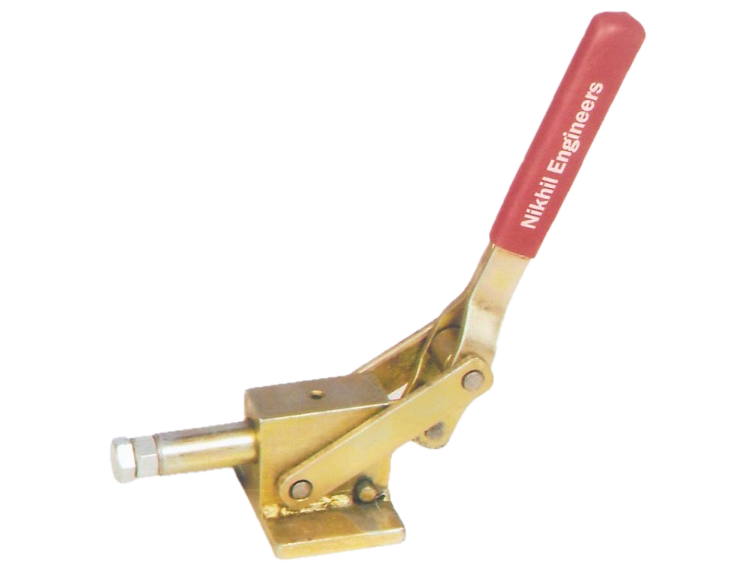

RAPSH-12

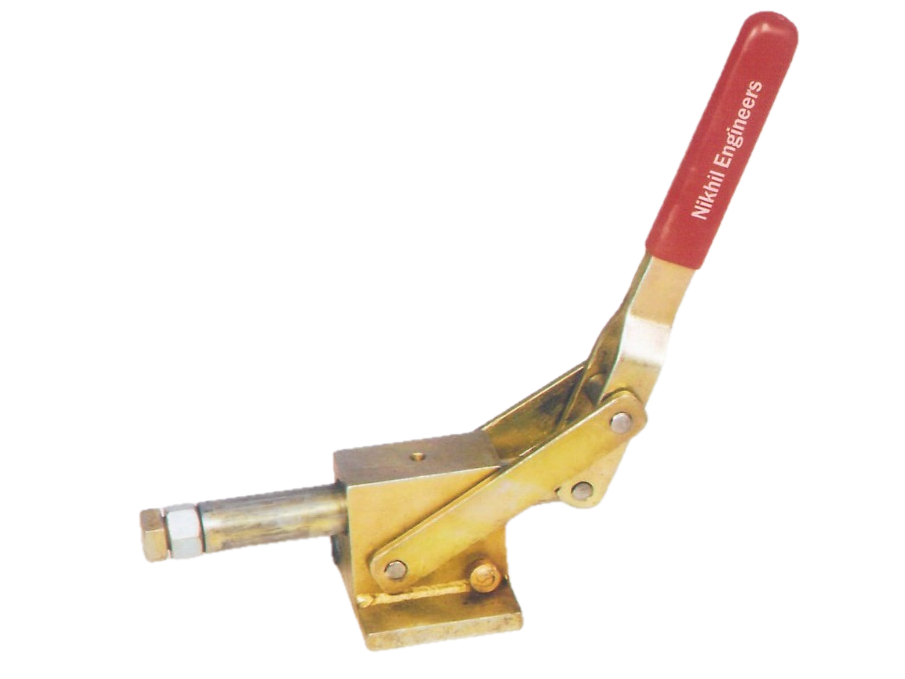

RAPSH-16
Specifications

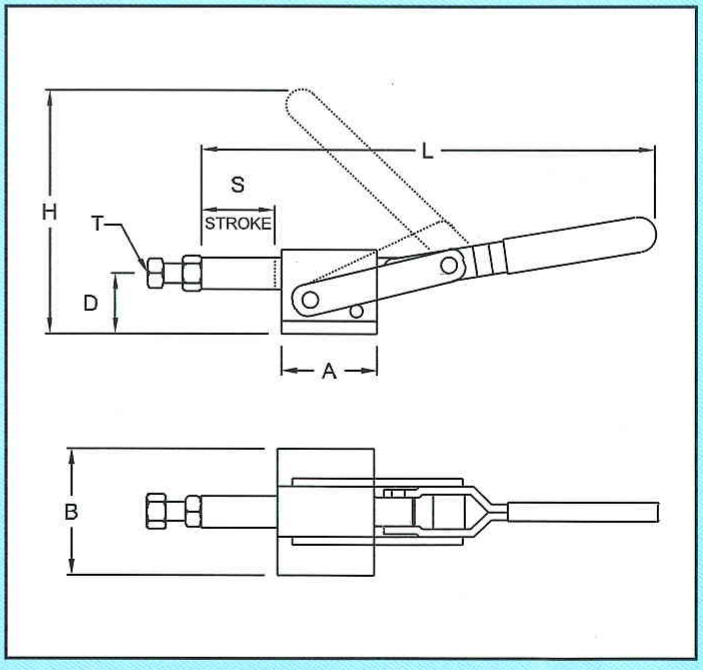

Click to view full size
Click a column heading to sort. All dimensions in mm unless noted.
| Model | A (mm) | B (mm) | D (mm) | H (mm) | L (mm) | S (mm) | T (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| RAPSH-08 | 50 | 75 | 28 | 170 | 260 | 30 | 8 | 350 | |
| RAPSH-10 | 55 | 75 | 32 | 190 | 290 | 35 | 10 | 800 | |
| RAPSH-12 | 60 | 88 | 40 | 190 | 330 | 50 | 12 | 1200 | |
| RAPSH-16 | 75 | 100 | 52 | 200 | 420 | 75 | 16 | 2000 |
