LAPSH — Low Centre-Height Straight-Line
Straight-line clamps as PSH but with a lower centre height.

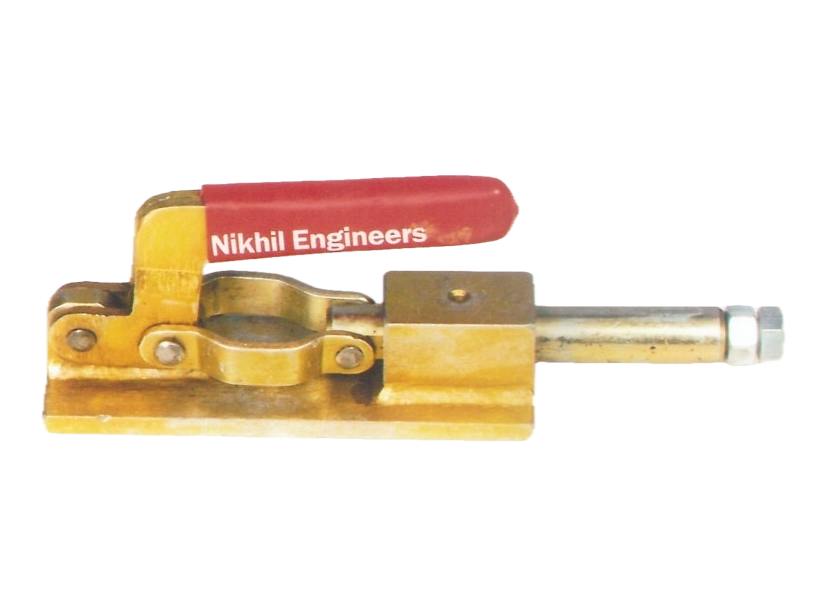

LAPSH-12

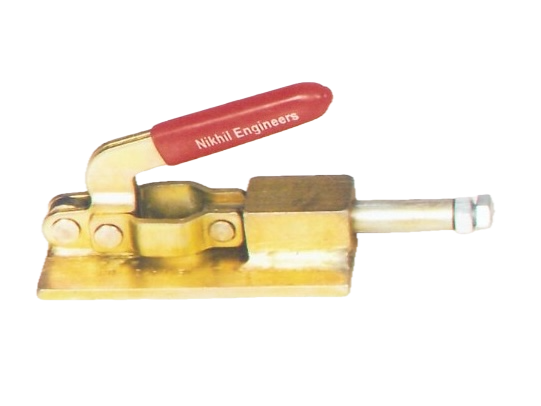

LAPSH-16

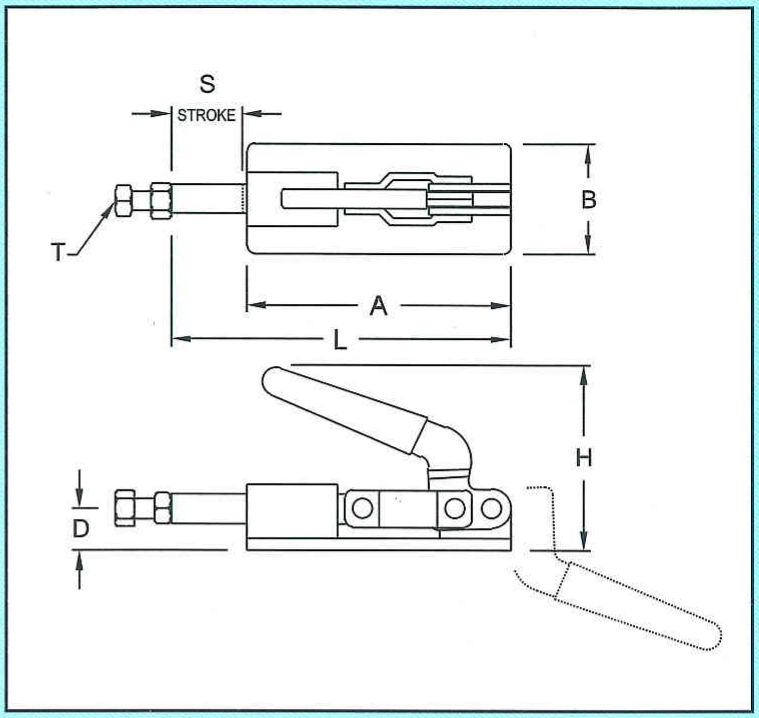

Specifications
Click to view full size
Click a column heading to sort. All dimensions in mm unless noted.
| Model | A (mm) | B (mm) | D (mm) | L (mm) | S (mm) | T (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|
| LAPSH-08 | 110 | 50 | 16 | 145 | 30 | 8 | 350 | |
| LAPSH-12 | 170 | 60 | 25 | 235 | 60 | 12 | 1000 | |
| LAPSH-16 | 225 | 75 | 30 | 330 | 100 | 16 | 2000 |
