UPL — Pull U-Bolt Type
Pull-action U-bolt clamps with adjustable bolt.

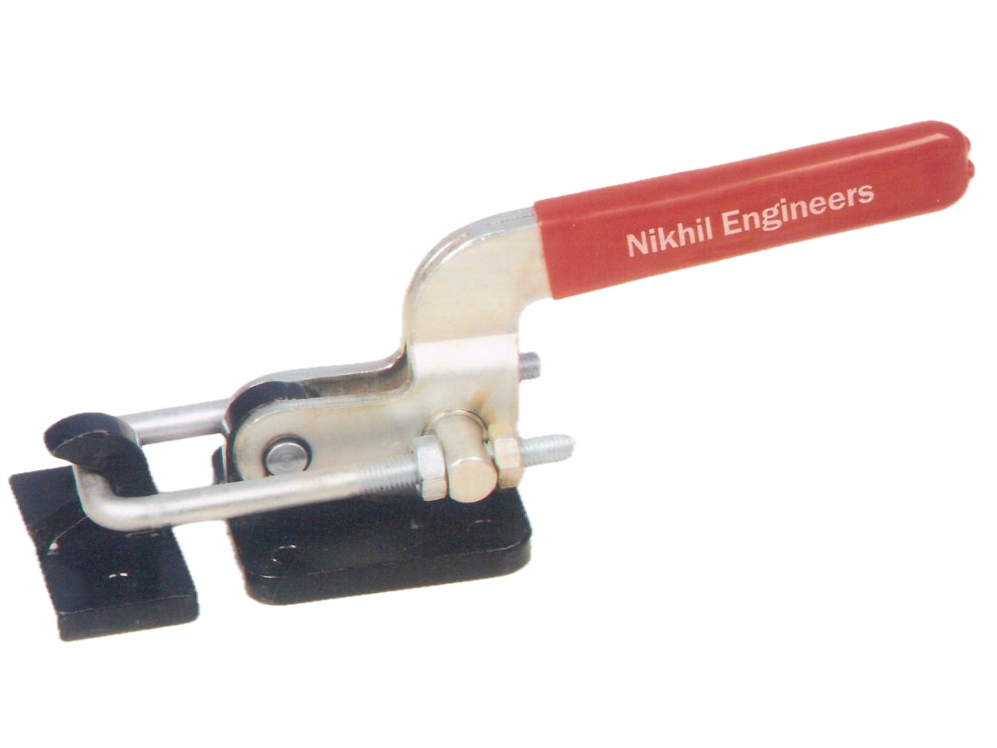

UPL-06

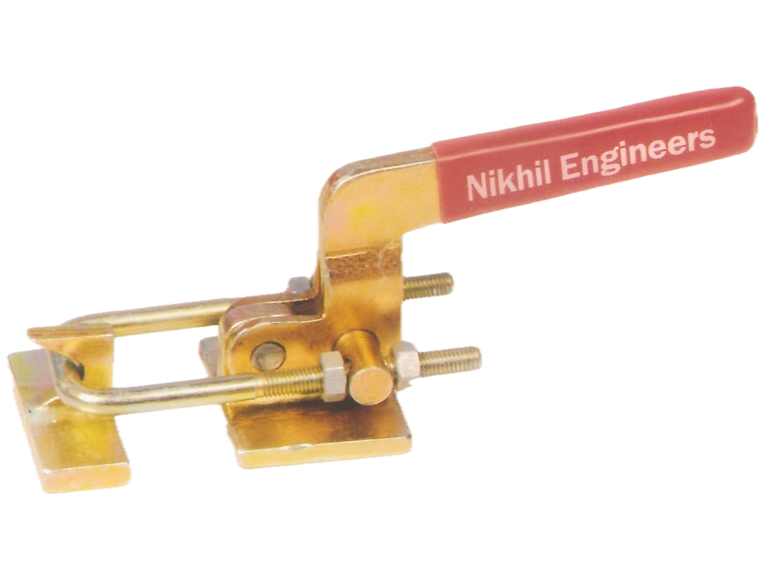

UPL-08

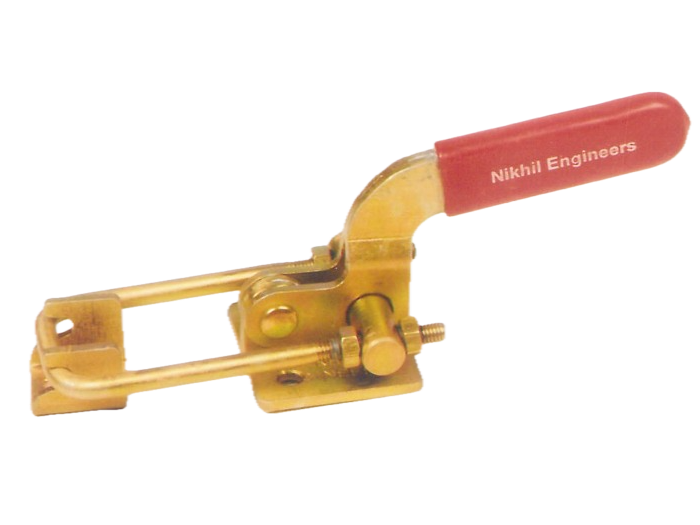

UPL-10

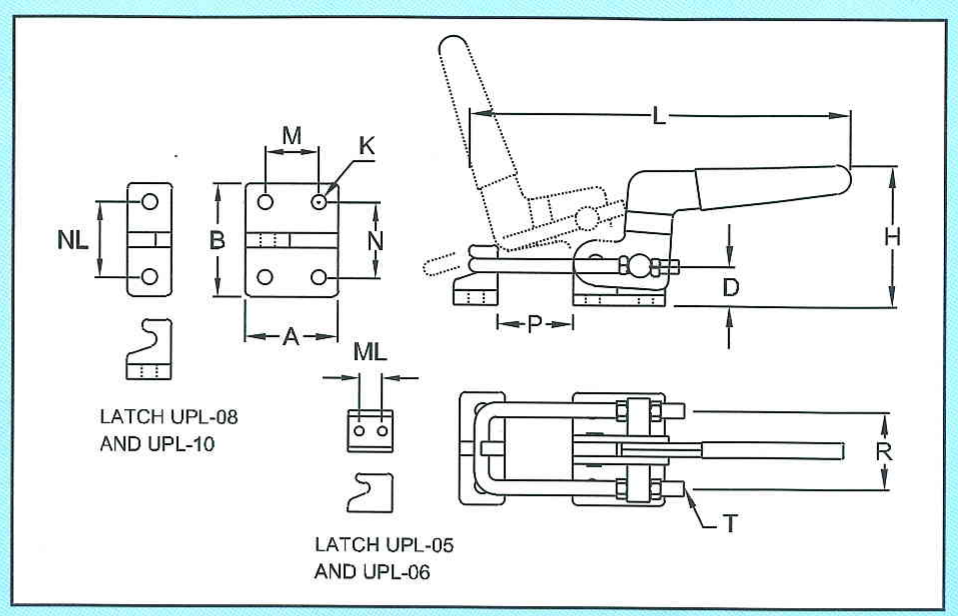

Specifications
Click to view full size
Click a column heading to sort. All dimensions in mm unless noted.
| Model | A (mm) | B (mm) | D (mm) | H (mm) | K (mm) | L (mm) | M (mm) | N (mm) | ML (mm) | NL (mm) | P (mm) | R (mm) | T (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UPL-05 | 35 | 38 | 14.5 | 60 | 5 | 155 | 20 | 25 | 13 | — | 20 | 25 | 5 | 200 | |
| UPL-06 | 45 | 50 | 16 | 70 | 6.5 | 185 | 25 | 30 | 12 | — | 30 | 41 | 6 | 300 | |
| UPL-08 | 50 | 63 | 23 | 90 | 6.5 | 225 | 28 | 42 | — | 42 | 40 | 42 | 8 | 800 | |
| UPL-10 | 85 | 80 | 33 | 110 | 9 | 280 | 56.5 | 56.5 | — | 56.5 | 25 | 46 | 10 | 1200 |
