HPL — Pull Hook Type
Pull-action hook clamps with adjustable hook.

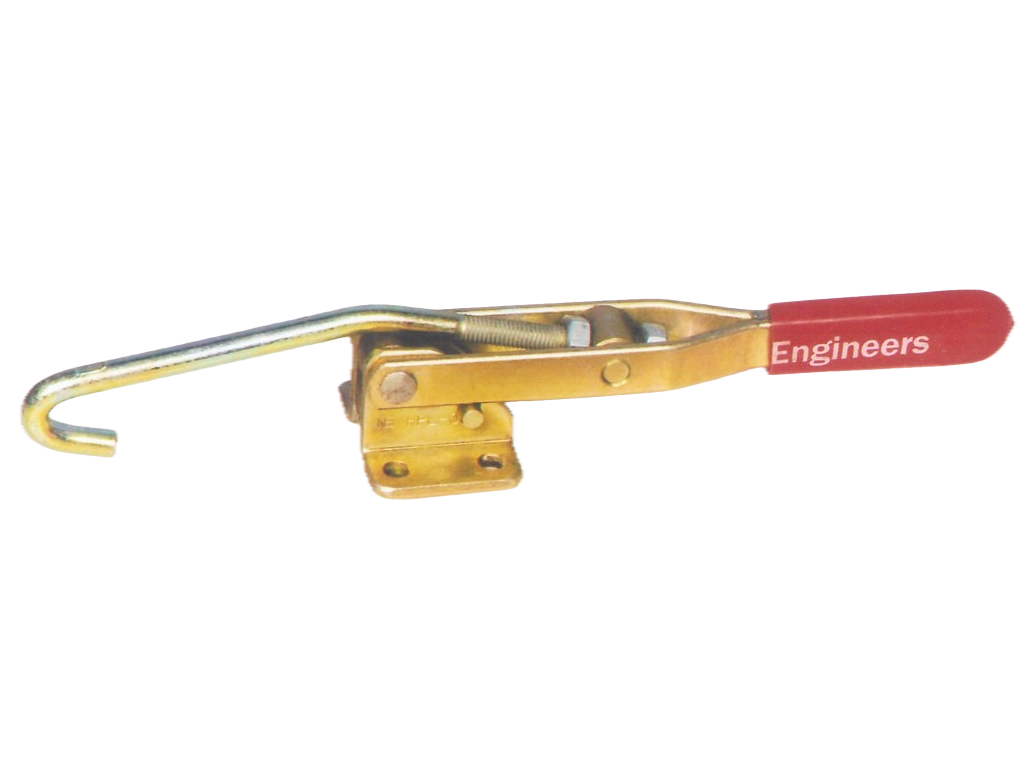

HPL-06

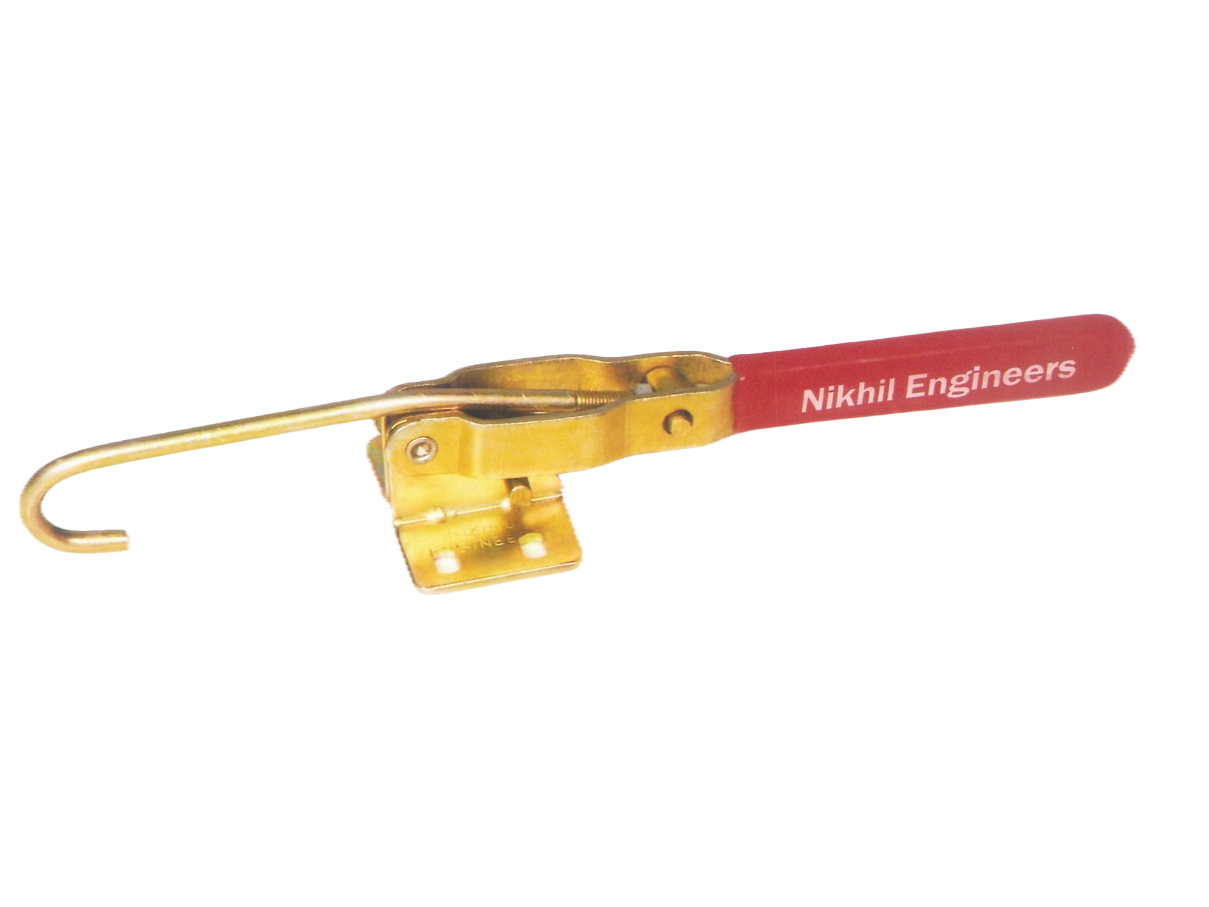

HPL-08
No image
HPL-10

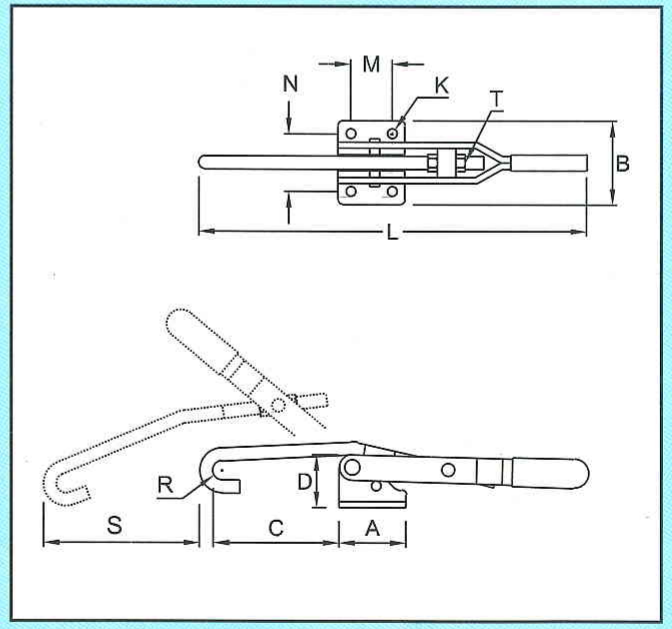

Specifications
Click to view full size
Click a column heading to sort. All dimensions in mm unless noted.
| Model | A (mm) | B (mm) | C (mm) | D (mm) | K (mm) | L (mm) | M (mm) | N (mm) | R (mm) | S (mm) | T (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPL-04 | 30 | 39 | 71 | 24 | 5 | 110 | 17.5 | 26.5 | 5 | 75 | 4 | 60 | |
| HPL-06 | 45 | 69 | 80 | 33 | 6.5 | 300 | 23 | 48 | 12 | 125 | 6 | 120 | |
| HPL-08 | 42 | 54 | 80 | 36 | 6.5 | 270 | 26 | 36 | 6 | 130 | 8 | 200 | |
| HPL-10 | 54 | 64 | 85 | 40 | 8.5 | 340 | 34 | 44 | 10 | 140 | 10 | 280 |
