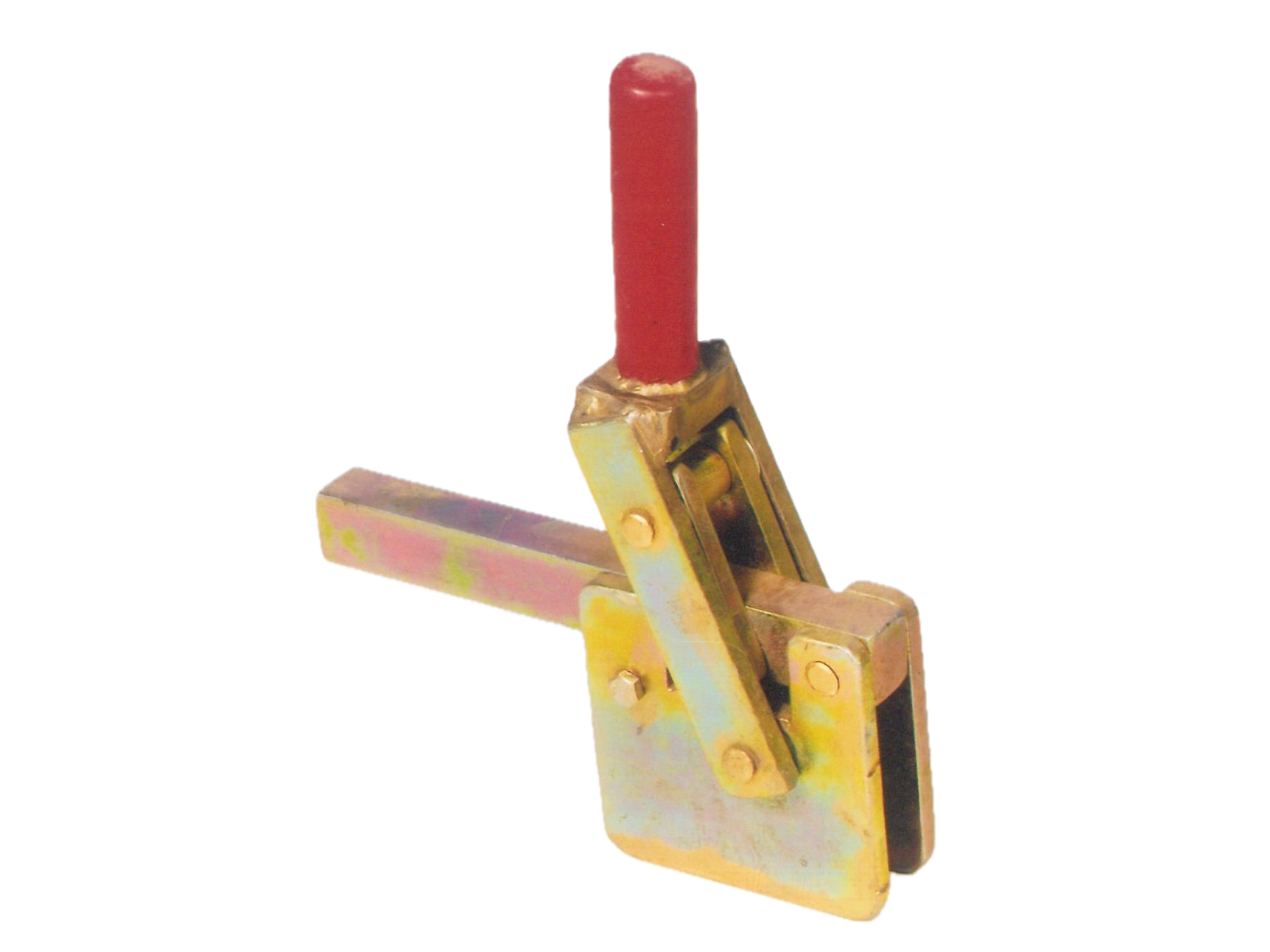

HLDVHY — Heavy-Duty Vertical Handle Clamps
Heavy-duty vertical handle hold-down clamps with solid bar arm.
HLDVHY-25
Specifications
Click to view full size

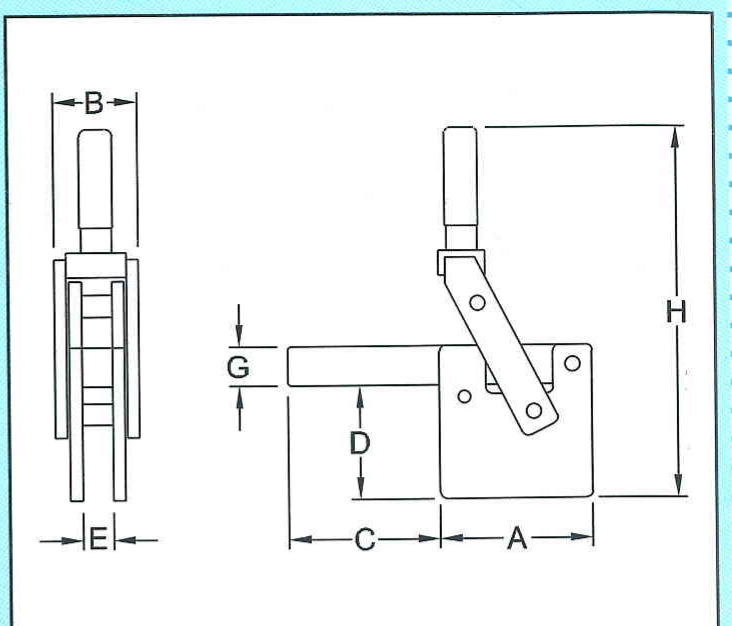

Click a column heading to sort. All dimensions in mm unless noted.
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | H (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| HLDVHY-20 | 100 | 55 | 100 | 75 | 20 | 20 | 260 | 750 | |
| HLDVHY-25 | 125 | 75 | 125 | 95 | 25 | 32 | 340 | 1250 |
