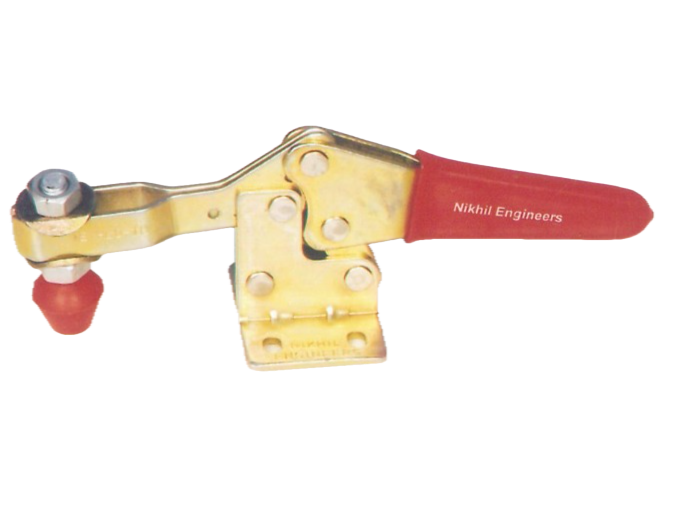

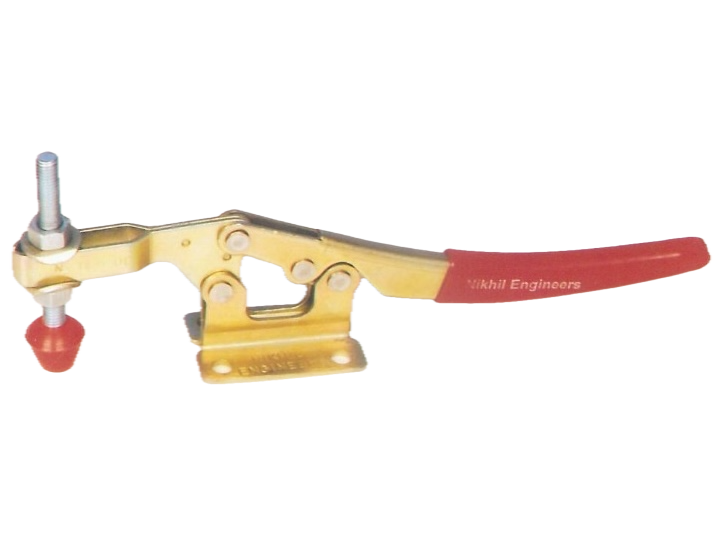

HLD — Horizontal Handle Clamps (U-Slot)
Hold-down horizontal handle clamps, U-slot type.
HLD-06
HLD-08
HLD-10
Specifications
Click to view full size
Click a column heading to sort. All dimensions in mm unless noted.

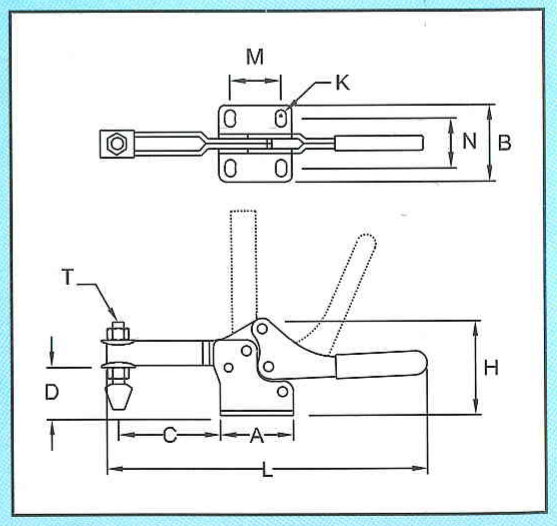

| Model | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | K (mm) | L (mm) | M (mm) | N (mm) | T (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HLD-04 | 22.5 | 25.5 | 14 | 7.5 | 16 | 4 | 60 | 12.8 | 18 | 84 | 25 | |
| HLD-06 | 38 | 38 | 53 | 28 | 51 | 5.5 | 165 | 26 | 24 | 6 | 100 | |
| HLD-08 | 57 | 39.5 | 55 | 40 | 55 | 7 | 235 | 40.5 | 25.5 | 8 | 120 | |
| HLD-10 | 50 | 68 | 65 | 42 | 76 | 6.5 | 230 | 30 | 45 | 10 | 250 |
