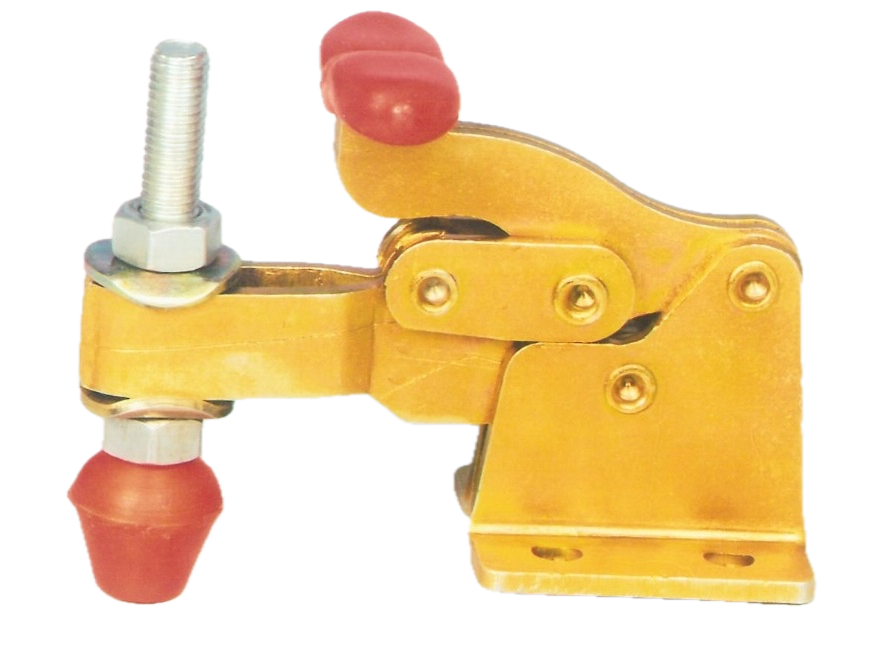

FLD — Front Handle Clamps (U-Slot)
Hold-down front handle clamps, U-slot type.
FLD-08
Specifications
Click to view full size

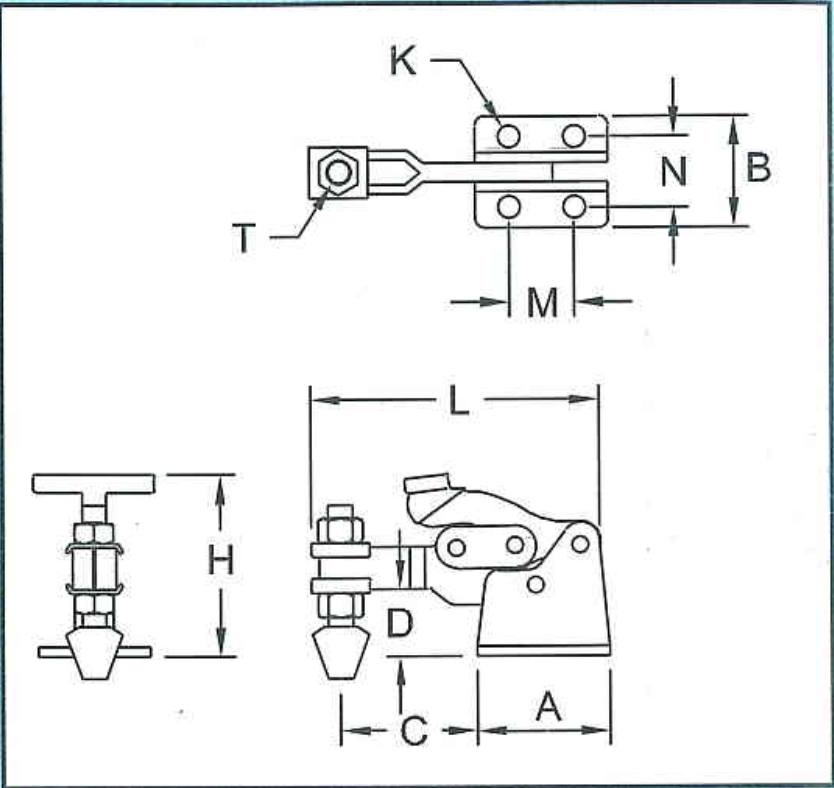

Click a column heading to sort. All dimensions in mm unless noted.
| Model | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | K (mm) | L (mm) | M (mm) | N (mm) | T (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FLD-05 | 27 | 24 | 28 | 12 | 42 | 4.5 | 60 | 13 | 14.5 | 5 | 30 | |
| FLD-08 | 45 | 42 | 50 | 29 | 68 | 6.5 | 110 | 23 | 28 | 8 | 100 |
